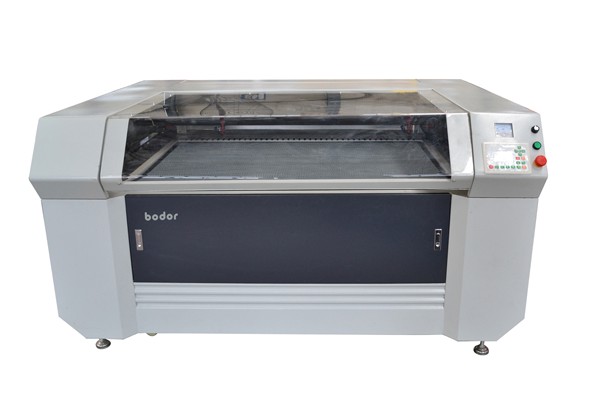

Double Heads Laser Engraving&Cutting Machine is the new model of Bodor laser machines, it is
developed from the original dual head laser machine to meet the requirements of clients, we
researched and developed the software which completely solves the problem that the distance
between the two laser heads can not be altered or have to be changed manually. With this machine
you can control the distance between the laser heads by changing the data of the software easily.
The unique interactive design of the machine allows the free switch between single laser head work
and double laser head work.Equipped with red light positioning device, accurately indicate the optical processing position, save artificial positioning of the trouble.The machine haswell comparability for many different softwares, and it also supports completely off-line work.
|
Working area：
|
|
1800*1200mm
|
|
|
Laser power：
|
60w/80w/100w/130w//150w/180w
|
|
Laser type：
|
CO2 Sealed laser tube , 10.6μm
|
|
Cooling type：
|
Water cooling
|
|
Engraving spee：d
|
0-60000mm/min
|
|
Cutting speed：
|
0-40000mm/min
|
|
Laser output control：
|
0-100% set by software
|
|
Min. engraving size：
|
Chinese: 2.0mm*2.0mm, English letter:
1.0mm*1.0mm
|
|
Locating accuracy：
|
≤+0.01mm
|
|
Controlling software：
|
DSP control system
|
|
Compatible software：
|
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
|
|
Color separation：
|
yes
|
|
Drive system：
|
High-precision 3-phase stepper motor
|
|
Auxiliary equipments：
|
Exhaust fan and air exhaust pipe
|
|
Power supply：
|
AC110V/220V+10%,50HZ/60HZ
|
|
Working environment：
|
Temperature:0-45C,Humidity 5-95%(No
condensate water)
|
|
Packing size：
|
according to the model
|
|
Net weight：
|
according to the model
|
|
Option：
|
honeycomb worktable, auto-focus
device
|
