Product description:

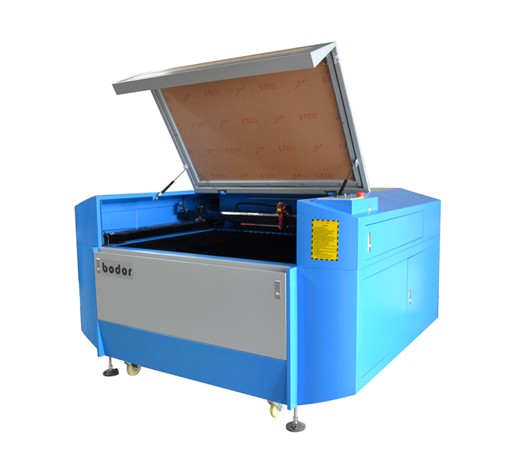

According to the character of light guide plate,Bodor develop a new laser cutting equipment--Light guide plate laser engraving/cutting machine.It is equipped with professional LGP making software,making the LGP cutting work quick and efficient,this is the fertures of the machine:
1.A fast and precise dot system, greatly enhance the production efficiency of light guide plate lattice point.
2.Dot-making,lineation,enraving and cutting in one operation.
3.Compatible with main design sofrware,and automatically optimize the parameter.
4.Support multiple light-in sides and variety of light-in methods.
5.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.
Technical Parameter:
|
BCL1309NL
|
BCL1610NL
|
BCL1325BL
|
Working area
|
1300*900mm
|
1600*1000mm
|
1300*2500mm
|
Laser power
|
60w/80w/100w
|
Laser type
|
CO2 Sealed laser tube , 10.6μm
|
Cooling type
|
Water cooling
|
Engraving speed
|
0-60000mm/min
|
Cutting speed
|
0-40000mm/min
|
Laser output control
|
0-100% set by software
|
Min. engraving size
|
Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm
|
Highest scanning precision
|
4000DPI
|
Locating accuracy
|
≤+0.01mm
|
Controlling software
|
DSP control system
|
Graphic format supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
Compatible software
|
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
|
Color separation
|
yes
|
Drive system
|
High-precision 3-phase stepper motor
|
Auxiliary equipments
|
Exhaust fan and air exhaust pipe
|
Power supply
|
AC110V/220V+10%,50HZ/60HZ
|
Working environment
|
Temperature:0-45C,Humidity 5-95%(No condensate water)
|
Option
|
up&down table, honeycomb worktable, rotary device, auto-focus device
|
