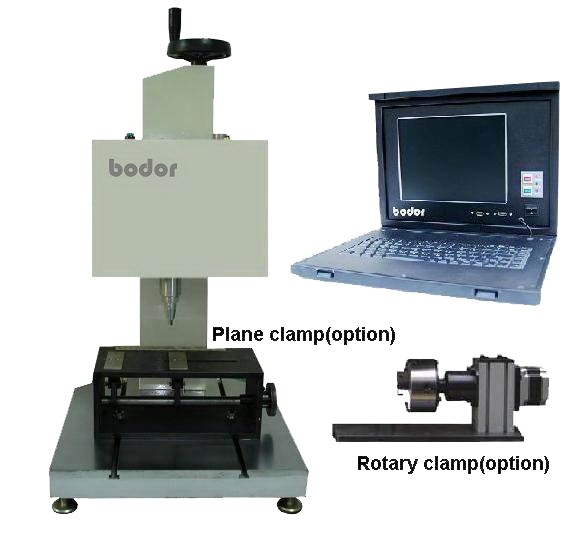

Product's Description:Dot peen marking machines(BMQ1408B)
Nameplate marking machine is pneumatic marking machine that work by the vibration caused by the compressed air andthe machine.It can mark signs, characters and pictures on various kinds of hard materials such as mental and plastic.It featured with distinct and beautiful effect, editable contents, adjustable sign size,depth, and high speed, etc.Nameplate marking machine is mainly consist of control system and the execution system.It is widely used in the field of macheniacl working and Automobile Industry. It is also the ideal choice of plane workpiece and the plate material marking.
Description
|
Parameter
|
BMQ1408B
|
Optional Configuration
|
Marking Range
|
140mm×80mm
|
80mm×80mm;140mm×140mm
200mm×140mm;200mm×200mm
300mm×300mm;400mm×400mm
|
Marking speed range:
|
10~100 words/min
|
|
Marking depth range
|
0.05 ~ 1.0mm
|
|
Compressed air pressure required
|
0.4~0.8Mpa
|
|
System functions
|
5.Characters, graphics, Chinese character editing
|
|
Marked Font size
|
Arbitrary adjustable
|
|
Tag character content
|
0 ~ 9 figures, A ~ Z large, lowercase letters Graphics, characters (users can be random homemade)
|
|
Operating voltage
|
Control cabinet ~ 220V 50Hz ± 10%
|
|
Machine power
|
≤200W
|
|
Work Environment
|
Temperature: 5 ~ +35 C ° Humidity: ≤ 80% room
|
|
Safety
|
Insulation resistance:Normal atmospheric pressure≥5MΩ/500V
|
|
Electric strength: ~50Hz、1500V 、1min
|
|
Leakage Curren
|
≤0.75Ma
|
Description
|
Parameter
|
BMQ1408B
|
Optional Configuration
|
Marking Range
|
140mm×80mm
|
80mm×80mm;140mm×140mm
200mm×140mm;200mm×200mm
300mm×300mm;400mm×400mm
|
Marking speed range:
|
10~100 words/min
|
|
Marking depth range
|
0.05 ~ 1.0mm
|
|
Compressed air pressure required
|
0.4~0.8Mpa
|
|
System functions
|
5.Characters, graphics, Chinese character editing
|
|
Marked Font size
|
Arbitrary adjustable
|
|
Tag character content
|
0 ~ 9 figures, A ~ Z large, lowercase letters Graphics, characters (users can be random homemade)
|
|
Operating voltage
|
Control cabinet ~ 220V 50Hz ± 10%
|
|
Machine power
|
≤200W
|
|
Work Environment
|
Temperature: 5 ~ +35 C ° Humidity: ≤ 80% room
|
|
Safety
|
Insulation resistance:Normal atmospheric pressure≥5MΩ/500V
|
|
Electric strength: ~50Hz、1500V 、1min
|
|
Leakage Curren
|
≤0.75Ma
|
Applicable industry
Machenical working,Automobile Industry,Aeronautics, Astronautics, and Petroleum equipment,etc.
Applicable material
All kinds of metal, such as aluminium rating plate,copper rating plate, stainless steel rating plate.
The samples:
