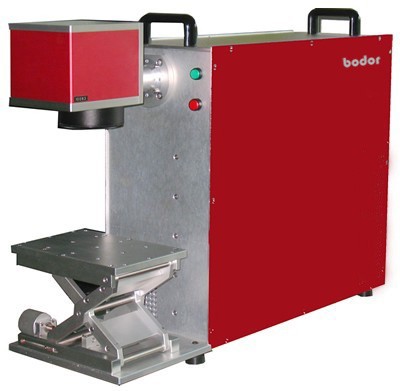

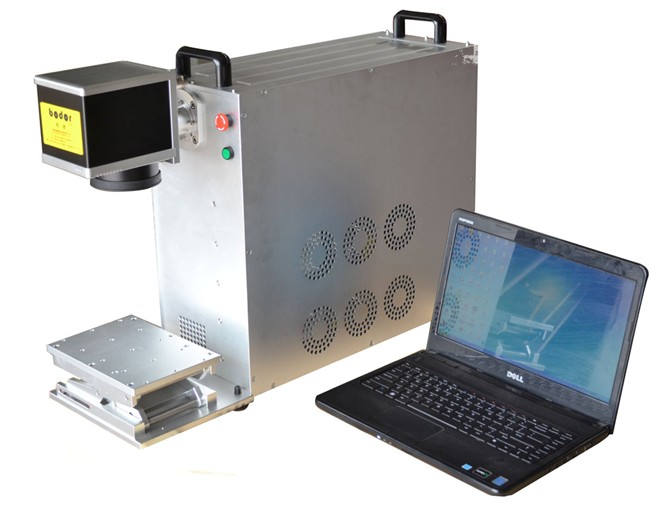

Product's description：Fiber laser marking machines
1.BODOR BML-F series fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
2.The quality of laser beam is very good(near to the limit of diffraction,exporting TEM00 fundamental transverse mode, M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker),Therefore it is very suitable for delicate marking.
3.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,BML-F can achieve high speed marking,and control the depth and shape of the facula .
4.The processing speed of BML-F is 2-3 times than the traditional marking machine.
5.Air cooling,the size of the machine is very small.
6.Long life,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!
Technical Parameter:Fiber laser marking machines
|
Model
|
BMF10F/BMF20F
|
|
Laser power
|
10W/20w
|
|
Laser Wavelength
|
1065±10nm
|
|
Q-frequency
|
20KHz~100KHz
|
|
Divergence
|
0.3mard
|
|
Marking range
|
100*100mm/200*200mm/300*300mm
|
|
Minimum line width
|
0.01mm
|
|
Minimum character
|
0.1mm
|
|
Marking speed
|
10mm/s
|
|
Marking depth
|
0 ~0.5mm
|
|
Engraving line speed
|
≤7000mm/s
|
|
Repeatability accuracy
|
±0.001mm
|
|
Beam quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, text, bar codes, two-dimensional code, automatically
marking the date, batch number, serial number, frequency,etc.
|
|
Graphic format supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
working voltage
|
220V±10%/50Hz/4A
|
|
Unit power
|
＜0.5kw
|
|
Use of the environment
|
Clean and dust free or dust less
|
|
Working condition:Humidity
|
5%-75%，free of condensed water
|
|
Laser module life
|
＞100000 hours
|
|
Net weight
|
125kg
|
|
Packing size
|
700*900*1380mm
|
Applicable Industries:Fiber laser marking machines
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
